Three-layer multi-channel illuminated aluminum profile flow rack | Advanced First-In-First-Out rack for electronic workshop aisles

Product Description

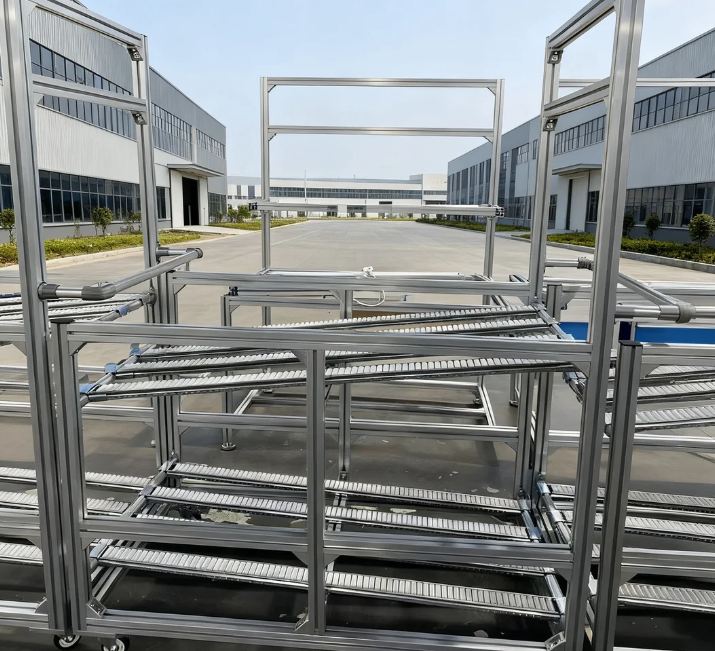

This model is a three-layer multi-channel integrated lighting flexible shelf. The entire structure is assembled using 4040 industrial aluminum profile modules. It is equipped with three independent partition flexible slides. A pre-installed LED lighting routing bracket is installed on the top, and a set of brake-equipped silent casters are provided at the bottom. The flexible strips rely on gravity to achieve the principle of first-in-first-out for materials. The multi-layer and multi-channel design can simultaneously store carriers, trays, and material boxes, and is equipped with workstation lighting. It is specifically designed for the temporary storage, sorting, and material preparation at the edge of the electronic manufacturing assembly line, and is an integrated lean material management equipment.

Product features
Three-layer three-dimensional multi-channel partition: Three independent smooth slides, each layer divided into left and right dual channels, which can completely separate the materials to be processed, semi-finished products, and defective products. The material classification is clear without mixing.
Built-in top lighting integrated frame: The upper layer reserves lamp installation positions and wiring channels, and can directly install LED lamp tubes to solve the backlighting problem of the assembly line and insufficient light at the workstation. No additional lamp stands are required.
Fully modular adjustable structure: The inclination angle of the smooth bar, the layer spacing, and the width of the channel can all be freely adjusted, suitable for different size material trays and material boxes.
Moveable silent caster configuration: Polyurethane silent caster at all four corners, smooth pushing without harsh noise. It comes with a locking clip, and after moving, it can be firmly fixed without sliding or shifting.

Product Advantages
Three-layer large-capacity storage, enhancing material preparation efficiency: The three-layer vertical storage system doubles the storage capacity compared to a single-layer conveyor rack, eliminating the need for workers to frequently travel to the warehouse to retrieve materials, significantly reducing the waiting time at the workstations.
Full protection for precision components: The rubber-coated conveyor belt provides cushioning and noise reduction, preventing metal friction from damaging circuit boards and plastic casings, effectively reducing the loss of defective materials in terms of appearance.
Flexible and adaptable for multi-category line changeover production: The width of the passage and the height of the layers can be adjusted quickly. New products can be changed without the need to replace the shelves. The adaptability of the small-batch, multi-category production line is extremely strong.
Friendly in the clean workshop: The aluminum profiles have an anodized surface that is smooth and easy to clean. There are no hidden dirt spots from oil stains. The silent casters will not scratch the epoxy floor, meeting the standards of an electronic clean workshop.

Application scenario
SMT surface mount soldering line material preparation for the edge of the strips, PCB inspection station material storage, 3C electronic product assembly production line, new energy circuit board processing workshop, laboratory sample sorting and storage, flexible assembly line for small household appliances.
